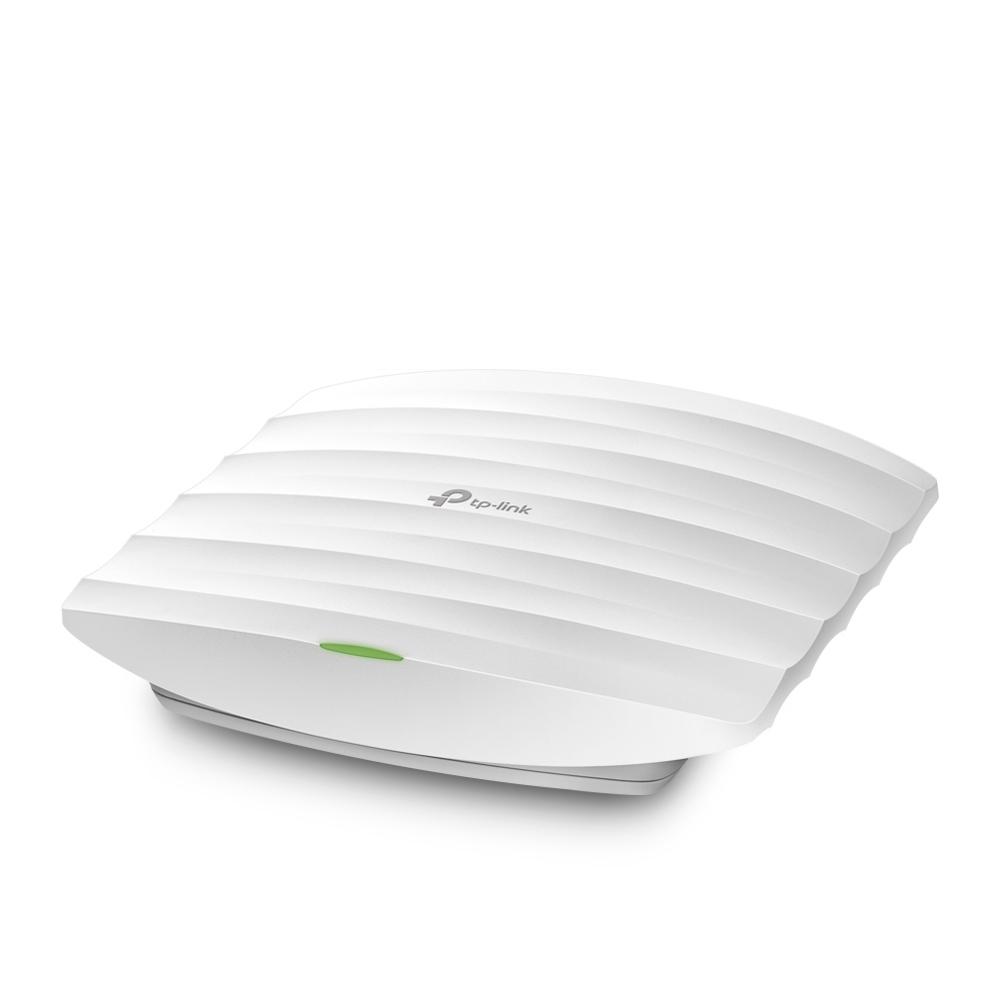

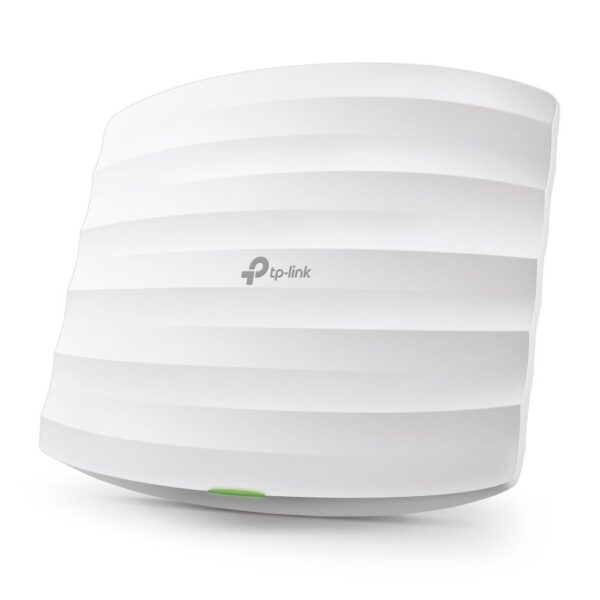

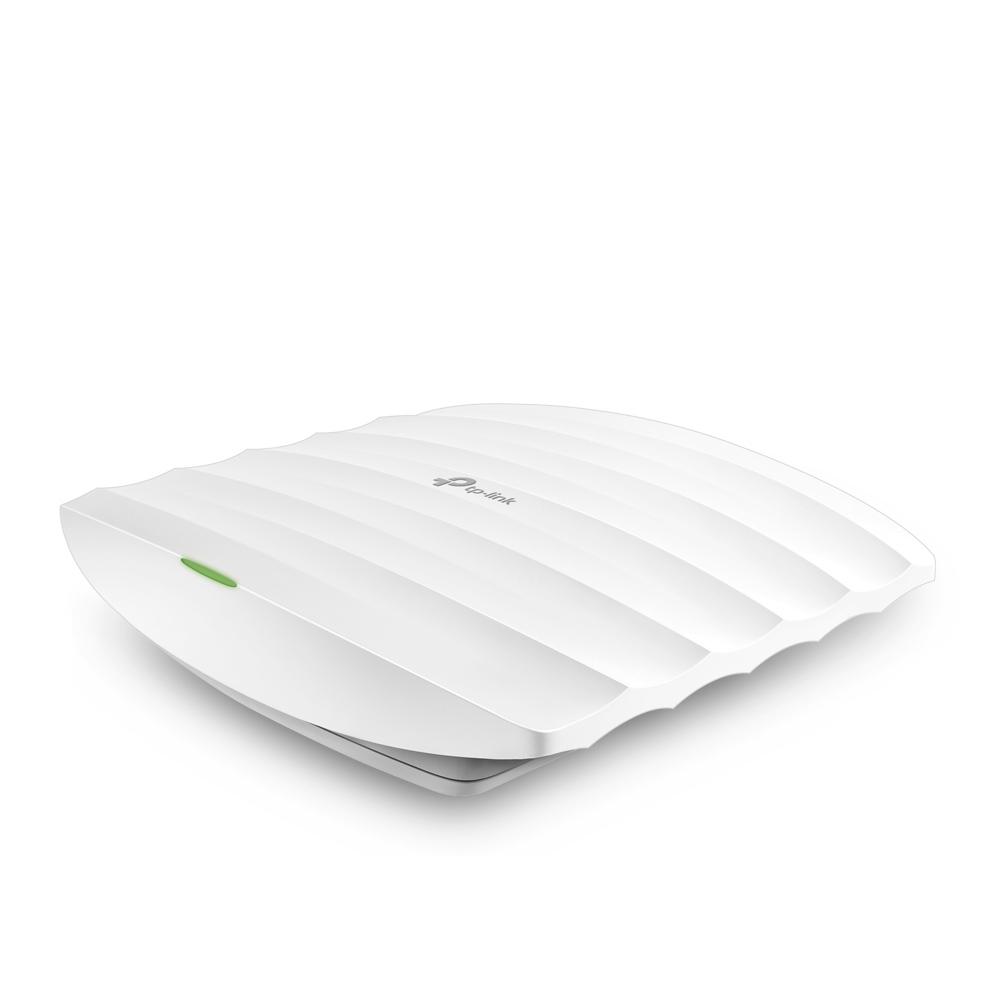

EAP245, AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point – White

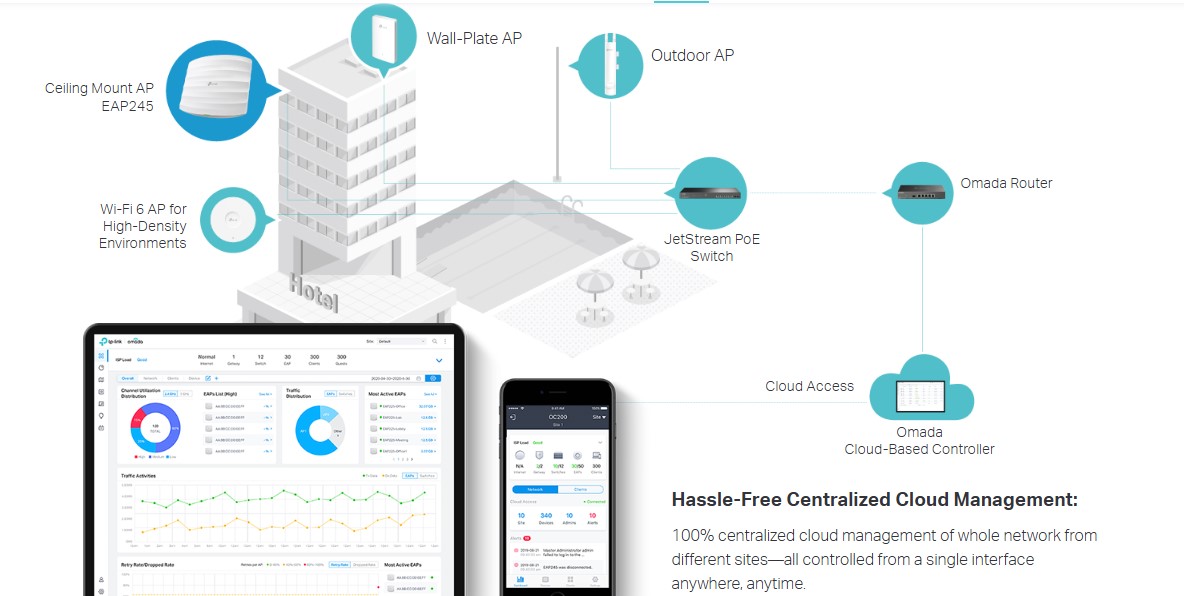

Omada SDN?Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Multiple PoE Options for Easy Installation

EAP245 supports both 802.3at PoE and Passive PoE power supply, which can be either powered by a PoE switch or PoE adapter**. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.

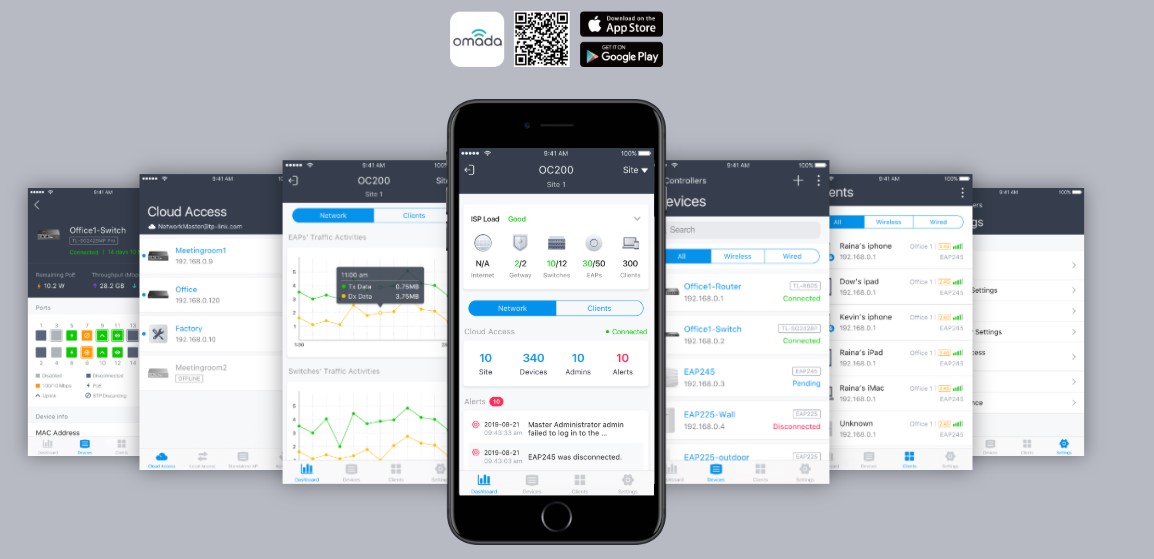

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Technical Specifications

HARDWARE FEATURES

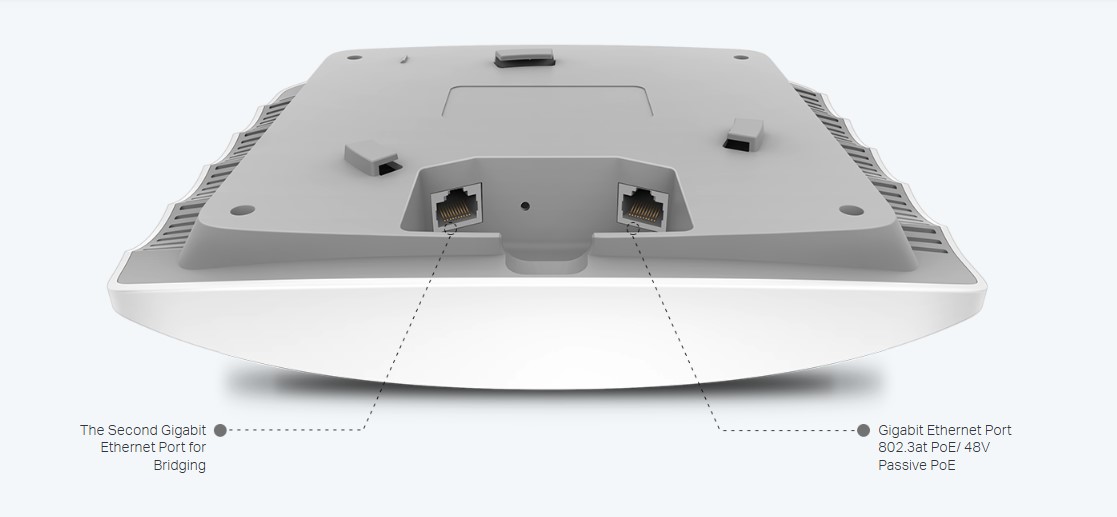

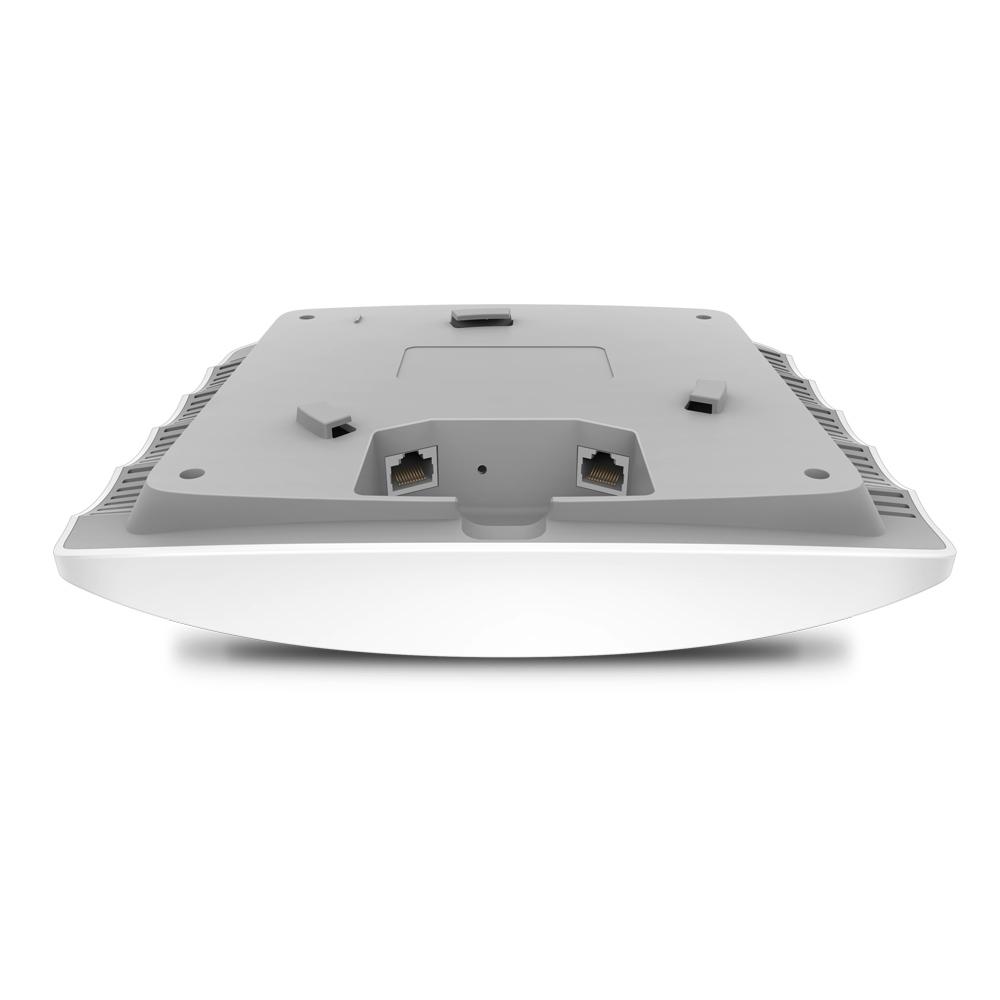

• Interface 2 ? Gigabit RJ45 Ports (One port supports IEEE802.3at PoE, another port supports Passive PoE Out)
• Physical Security Lock    Yes
• Button    Reset
• Power Supply    ? 802.3at PoE, ? 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter included.)
• Power Consumption    EU: 15.2 W, US: 16.3 W
• Dimensions ( W x D x H )    8.1 ? 7.1 ? 1.5 in (205.5 ? 181.5 ? 37.1 mm)
• Antenna Type    Internal Omni, ? 2.4 GHz: 3? 3.5 dBi, ? 5 GHz: 3? 4 dBi
• Mounting    Ceiling/Wall Mounting (Kits included)

WIRELESS FEATURES

• Coverage    140?(1500 ft?)?
• Concurrent Clients    220+***
• Wireless Standards    IEEE 802.11ac/n/g/b/a
• Frequency    2.4GHz and 5GHz

Signal Rate


• 5 GHz:Up to 1300 Mbps
• 2.4 GHz:Up to 450 Mbps

Wireless Functions


• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
•  MU-MIMO

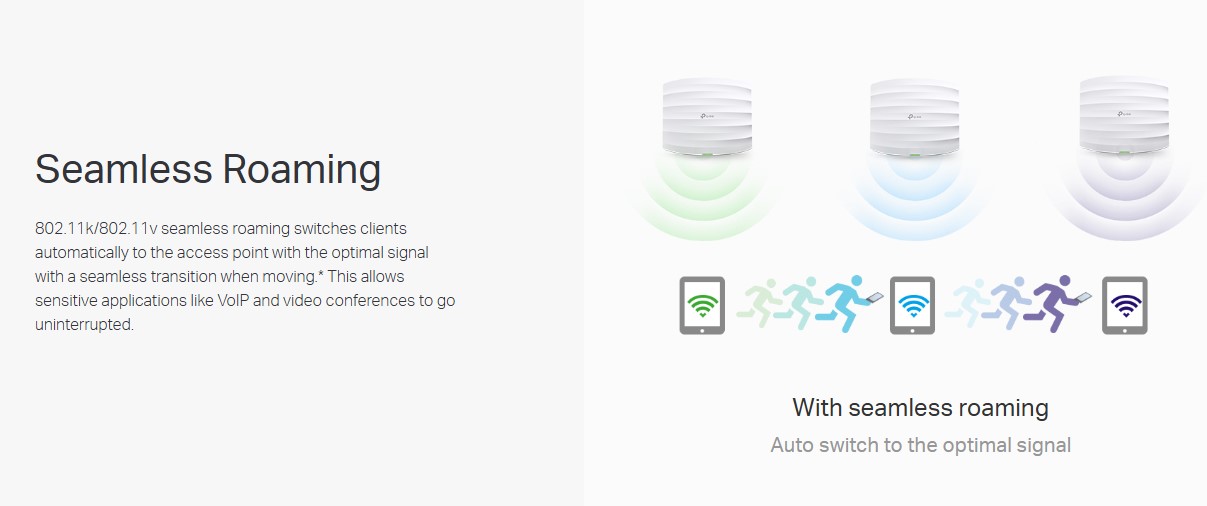

• Seamless Roaming(802.11k/v/r)*
• Omada Mesh*
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security

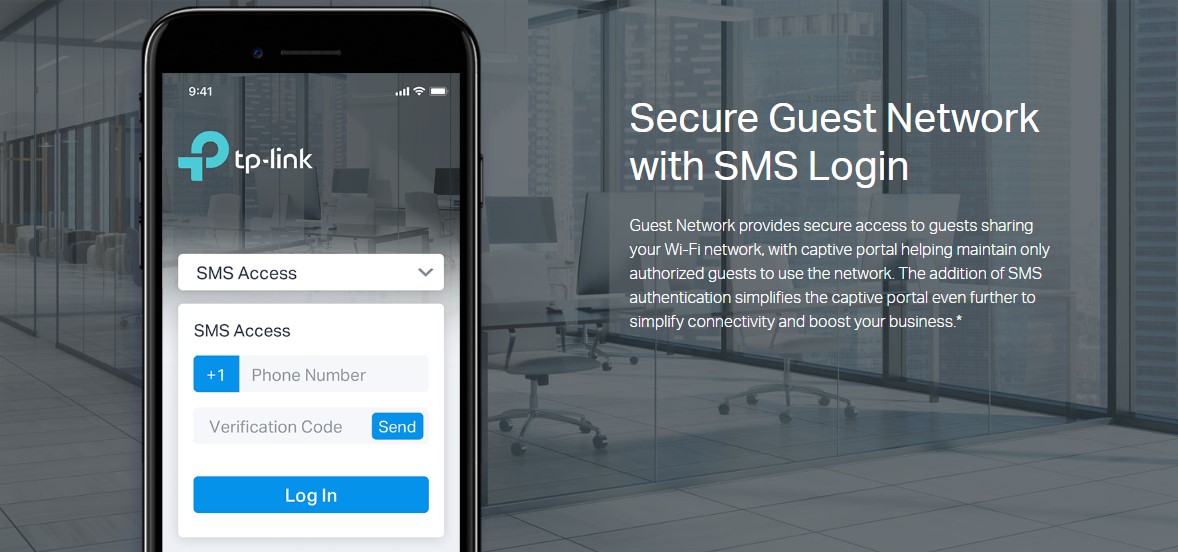

• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,
• WPA-PSK / WPA2-PSK

Transmission Power


? CE:
?20 dBm (EIRP @2 GHz)
?23 dBm (EIRP @5 GHz Band1&2)
?28 dBm (EIRP @5 GHz Band3)
? FCC:
?24 dBm (2.4 GHz)
?24 dBm (5 GHz)


MANAGEMENT

• Omada App    Yes

Centralized Management


• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

• Cloud Access    Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Email Alerts    Yes
• LED ON/OFF Control    Yes
• Management MAC Access Control    Yes
• SNMP    v1, v2c
• System Logging Local/Remote Syslog    Local/Remote Syslog
• SSH    Yes
• Web-based Management    HTTP/HTTPS
• L3 Management    Yes
• Multi-site Management    Yes
• Management VLAN    Yes
• Zero-Touch Provisioning    Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification


• CE, FCC, RoHS

Package Contents

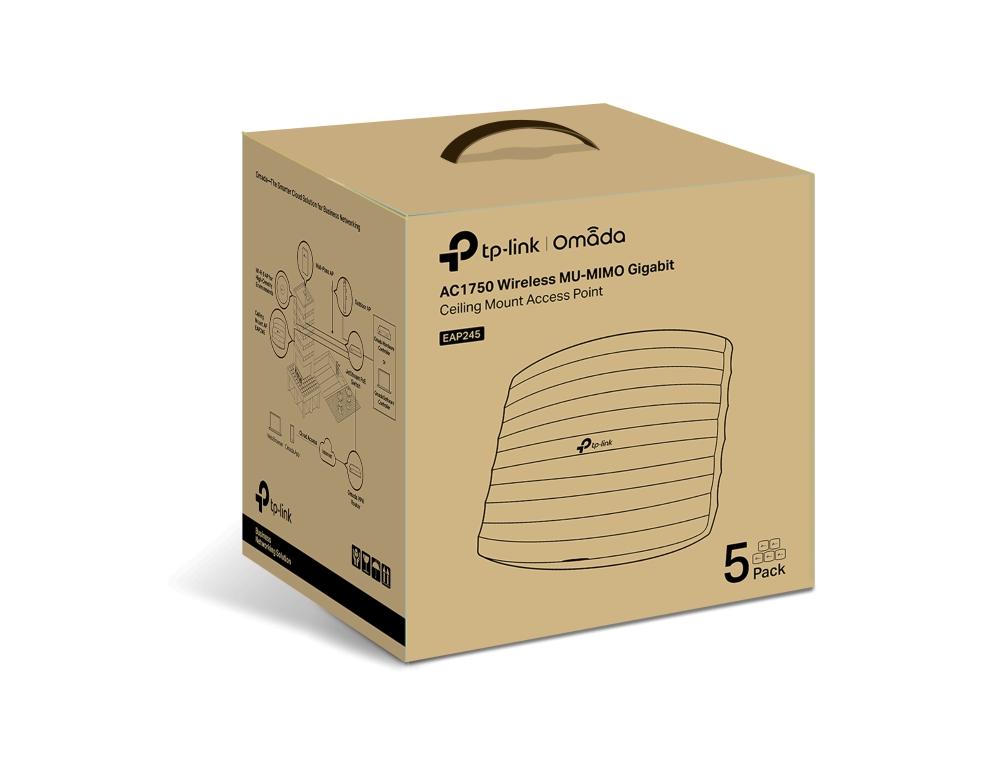

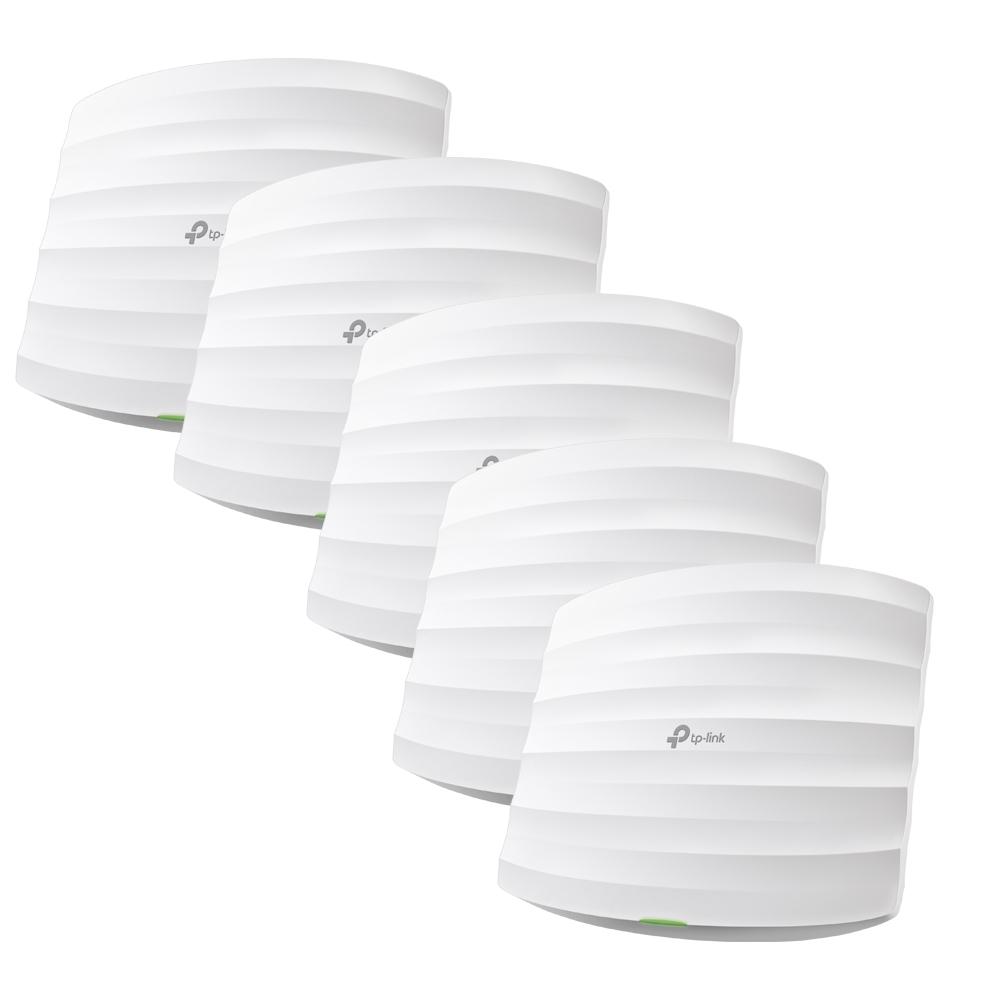

• 5 EAP245 Access Points
• 5 Mounting Kits
• 1 Installation Guide

System Requirements


• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment


• Operating Temperature: 0?40 ? (32?104 ?)
• Storage Temperature: -40?70 ? (-40?158 ?)
• Operating Humidity: 10?90% RH non-condensing
• Storage Humidity: 5?90% RH non-condensing
