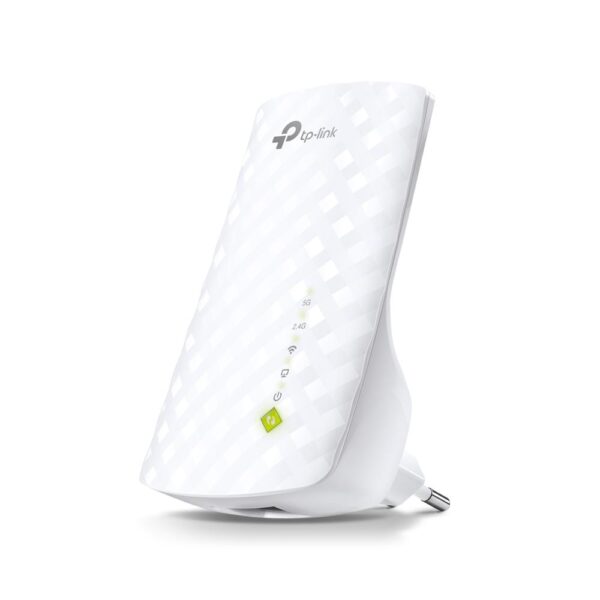

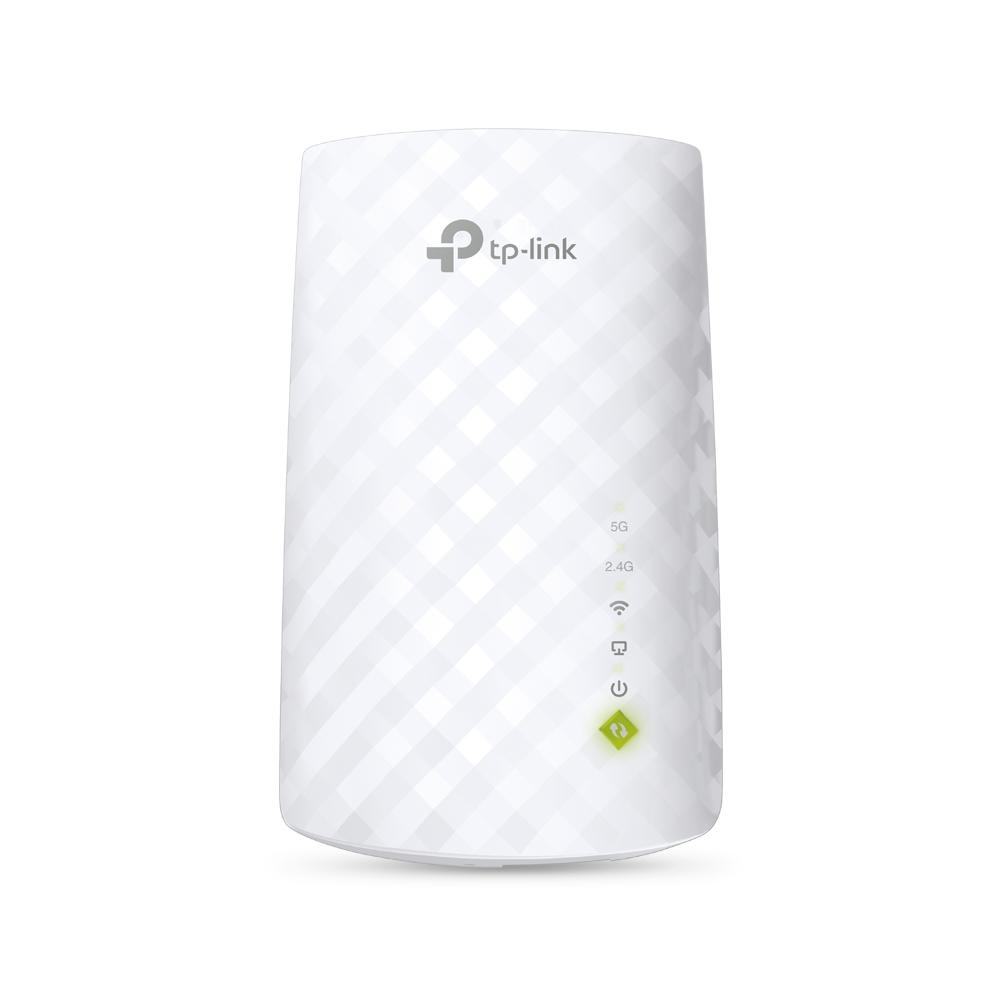

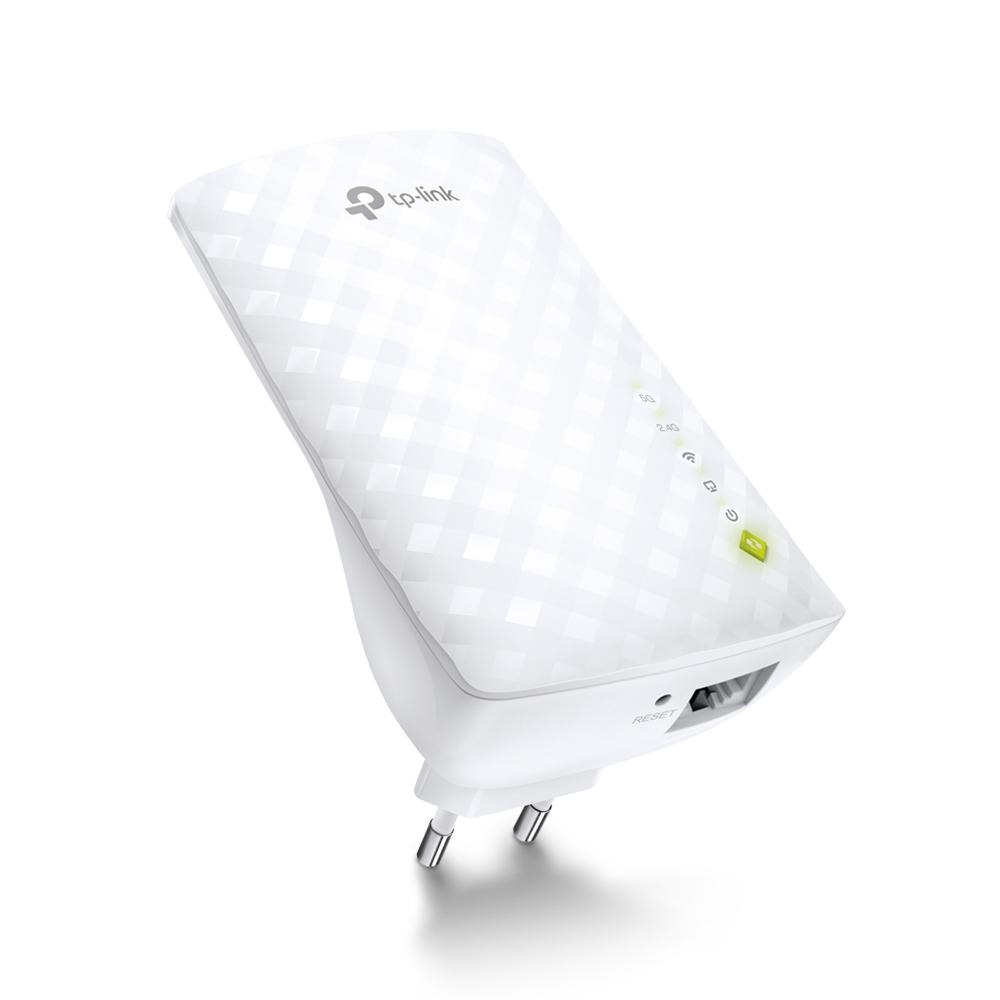

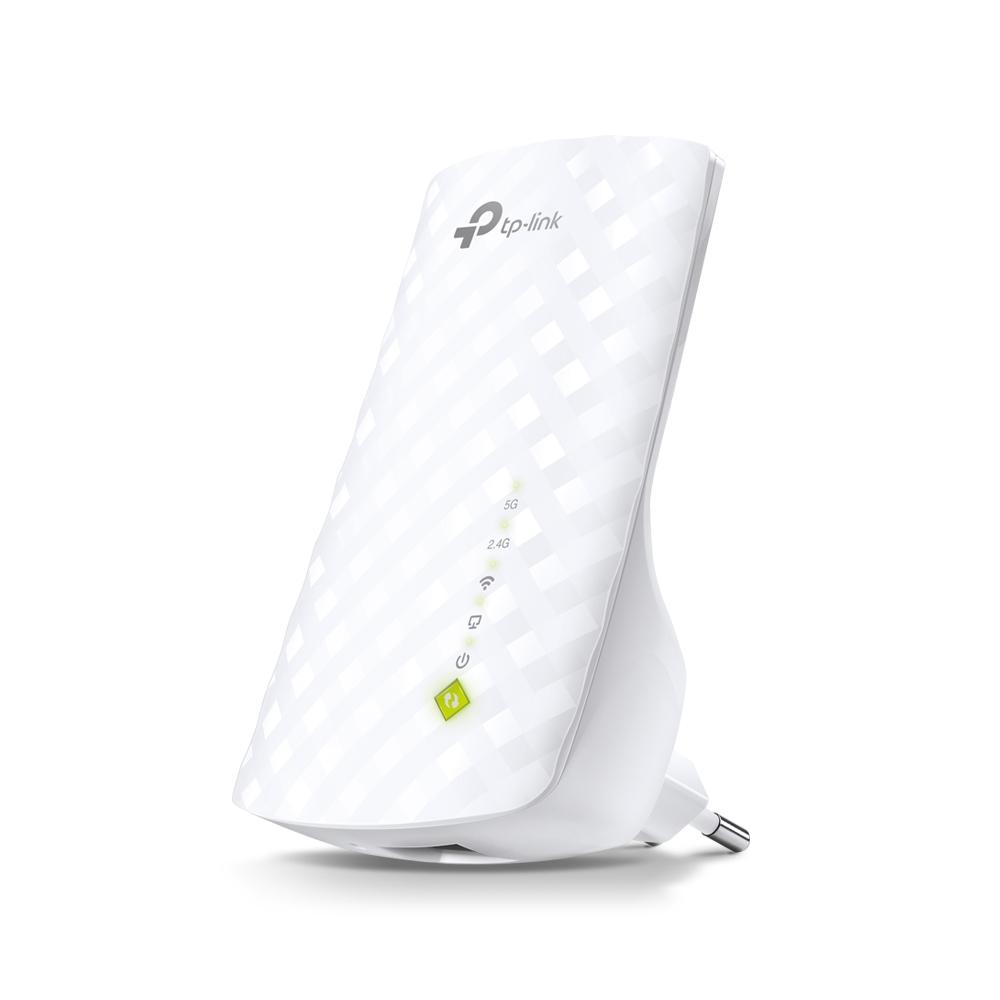

RE200: AC750, Mesh Wi-Fi Range Extender – White

Technical Specifications

HARDWARE FEATURES

• Plug Type    EU, UK, US, AU

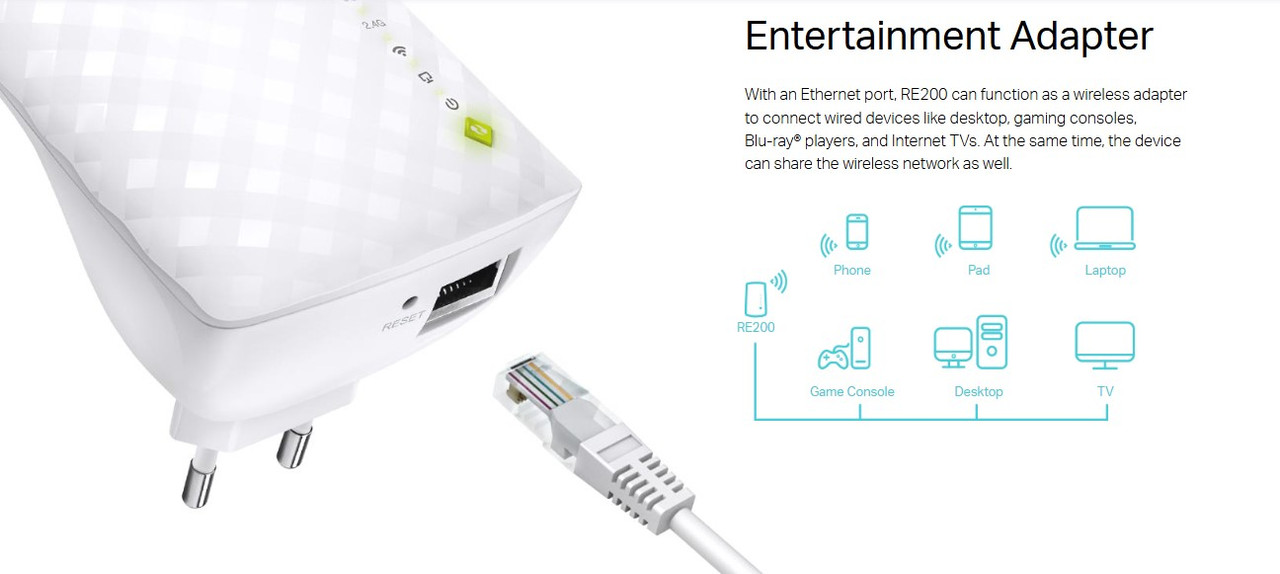

• Ports    1 x 10/100Mbps Ethernet Port (RJ45)
• Button    WPS Button, Reset Button
• Input Power    100-240V~50/60Hz
• Power Consumption    About 6.5W
• Dimensions ( W x D x H )    4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
• Antenna    3 Internal Antennas

WIRELESS FEATURES
Wireless Standards


• IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency


• 2.4GHz & 5GHz

Signal Rate


• 300Mbps at 2.4GHz, 433Mbps at 5GHz

Working Modes

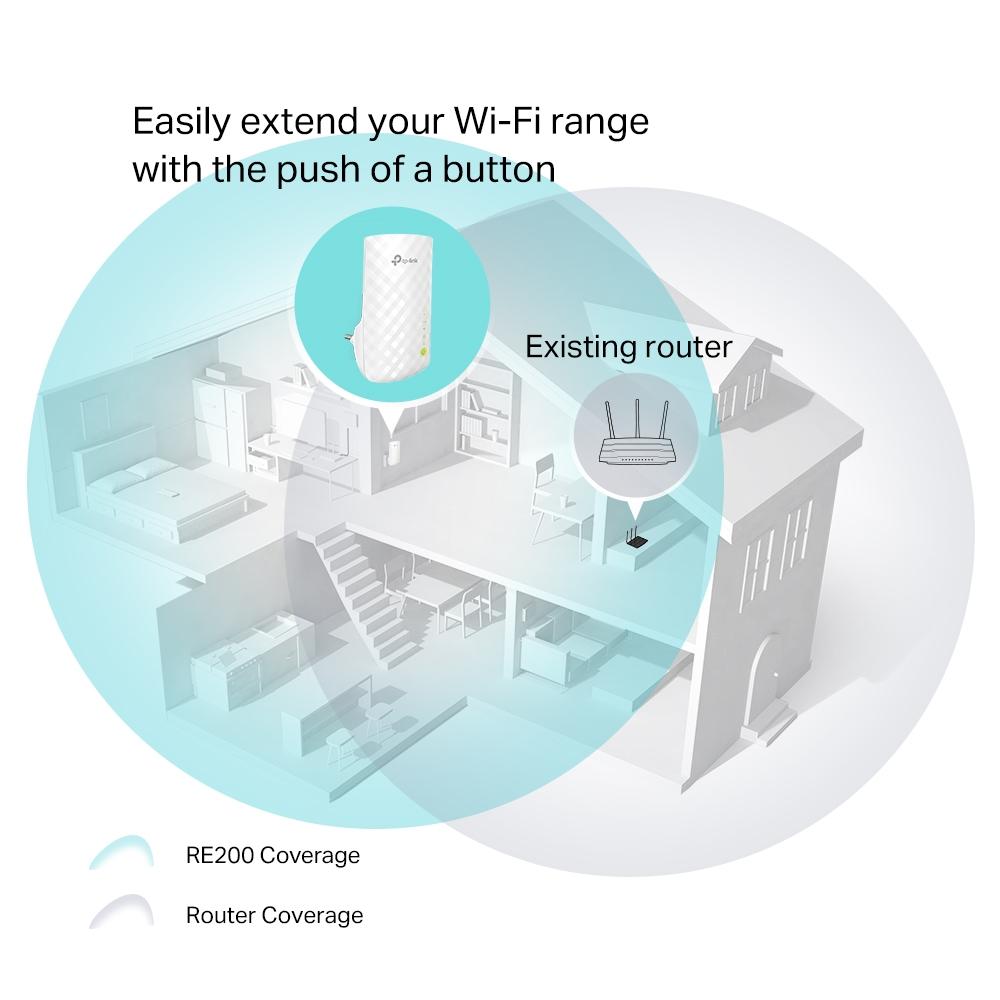

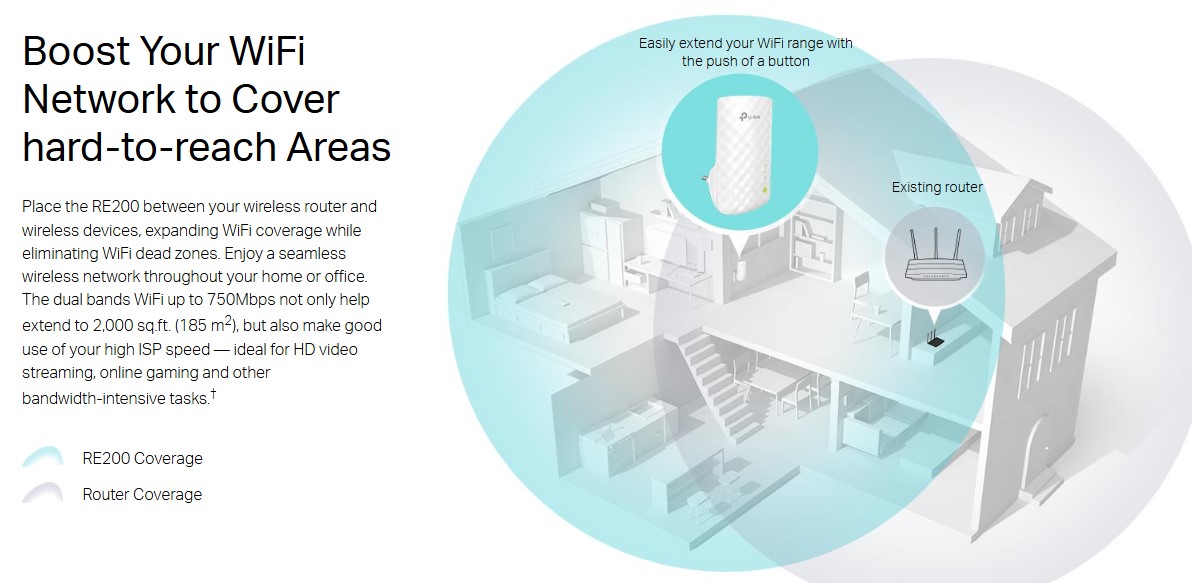

• Range Extender/Access Point

Reception Sensitivity


5G:

• 390M: -60dBm
• 29.3M: -83dBm
• 180M: -64dBm
• 13.5M: -87dBm
• 78M: -68dBm
• 6.5M: -90dBm
• 54M: -75dBm
• 6M:-90dBm

2.4G:

• 270M: -70dBm
• 130M: -70dBm
• 108M: -73dBm
• 54M: -75dBm
• 11M: -86dBm
• 6M: -92dBm
• 1M: -94dBm

Wireless Functions


• Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control

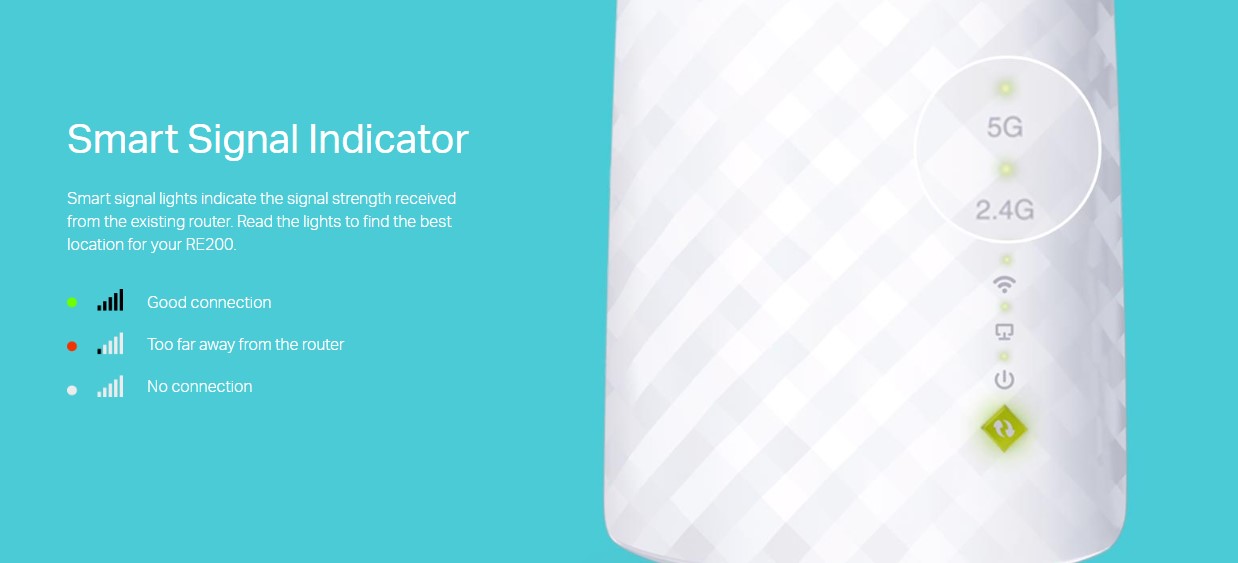

• LED Control
• Power Schedule
• Wi-Fi Coverage

Wireless Security


• 64/128/152-bit WEP
• WPA-PSK / WPA2-PSK

Transmission Power


• < 20 dBm (EIRP)

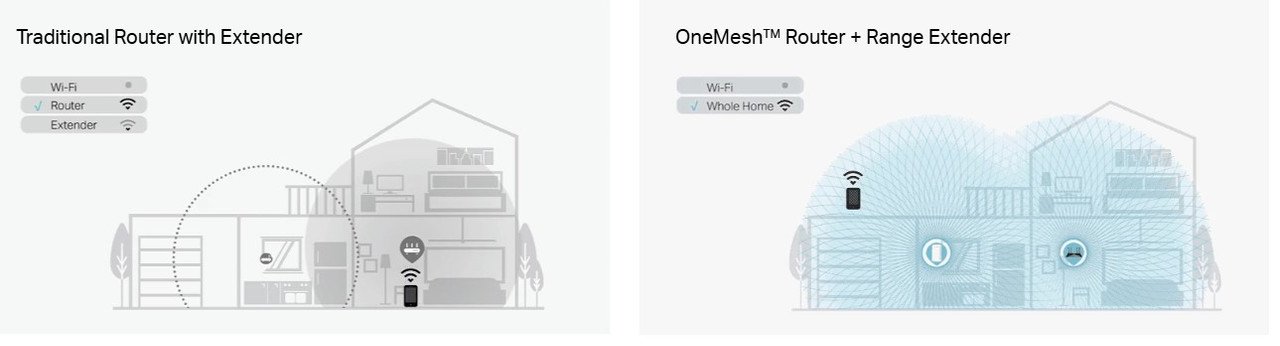

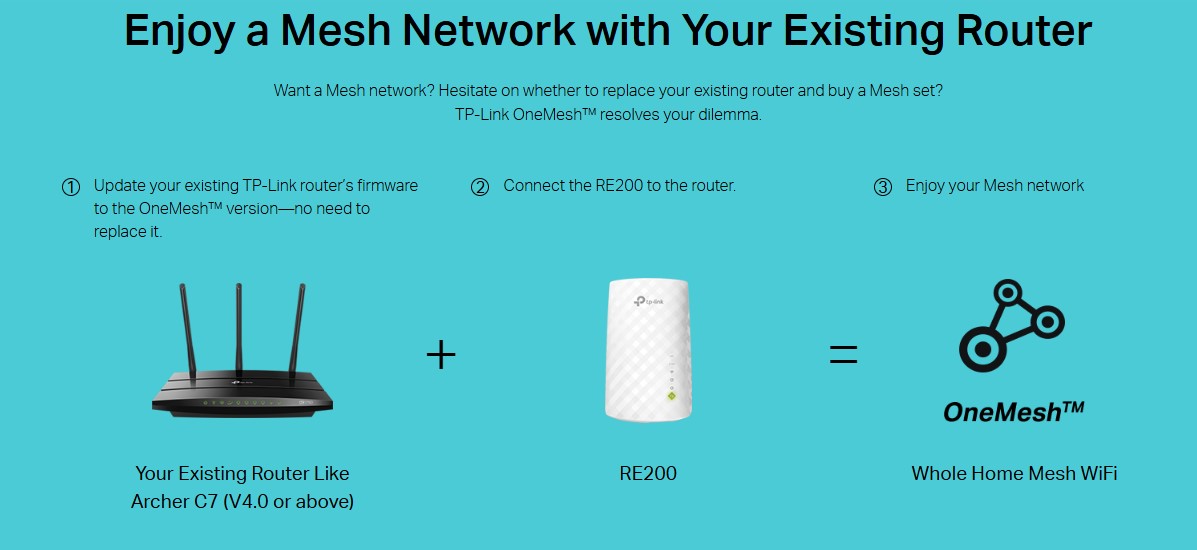

Mesh Technology


• OneMesh

OTHERS
Certification


• CE, FCC, RoHS

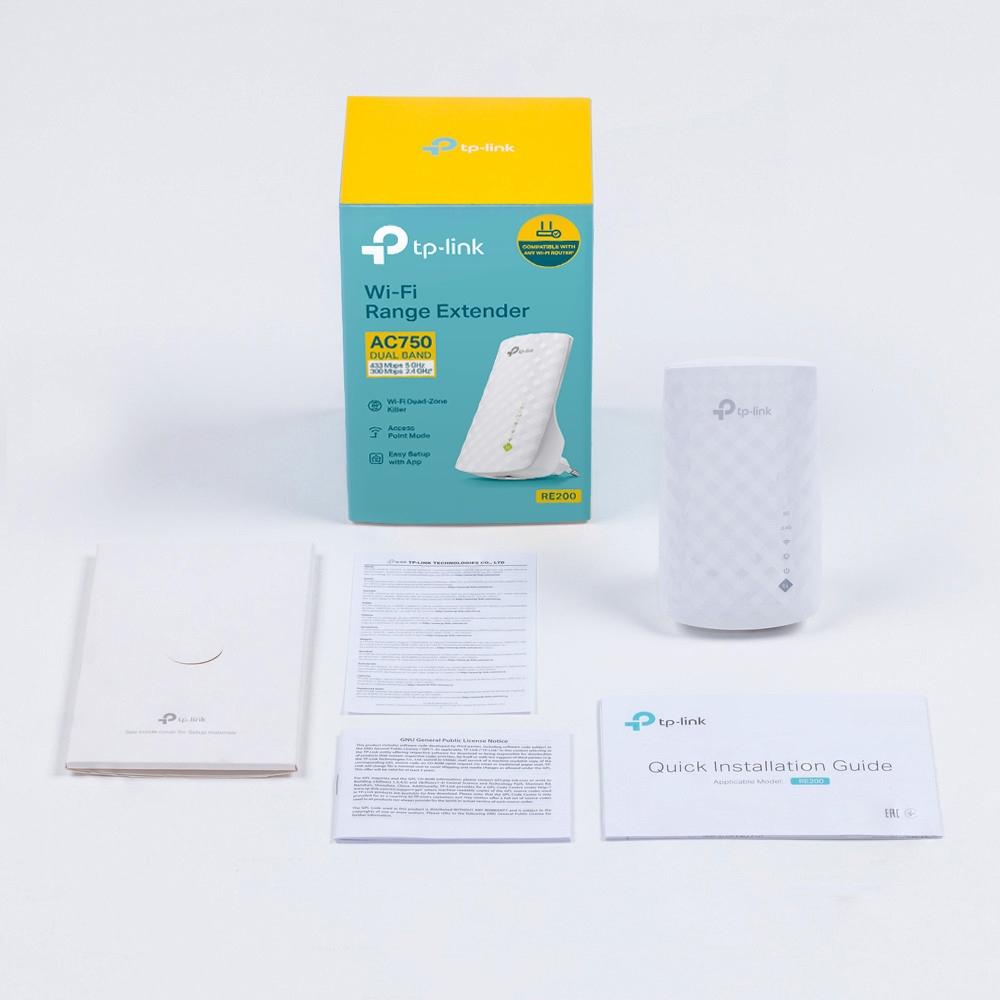

Package Contents


• AC750 Wi-Fi Range Extender RE200
• Quick Installation Guide

System Requirements


• Microsoft? Windows? 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac? OS, NetWare?, UNIX? or Linux.

Environment


• Operating Temperature: 0?C~40?C (32?F~104?F)
• Storage Temperature: -40?C~70?C (-40?F~158?F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
