RE220, AC750 Mesh Wi-Fi Range Extender – White

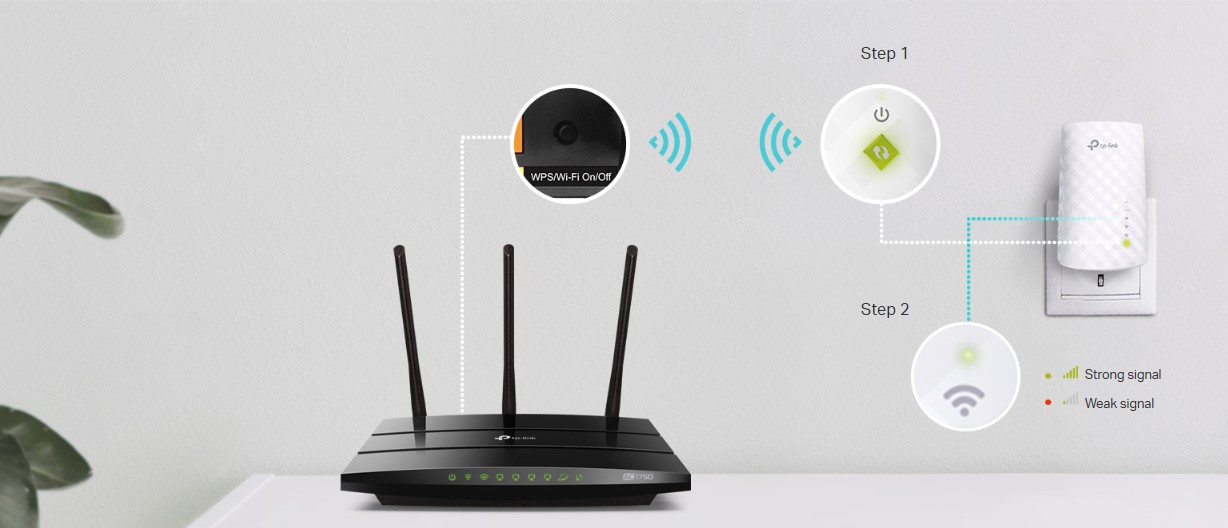

Simple Two-Step Setup

Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the

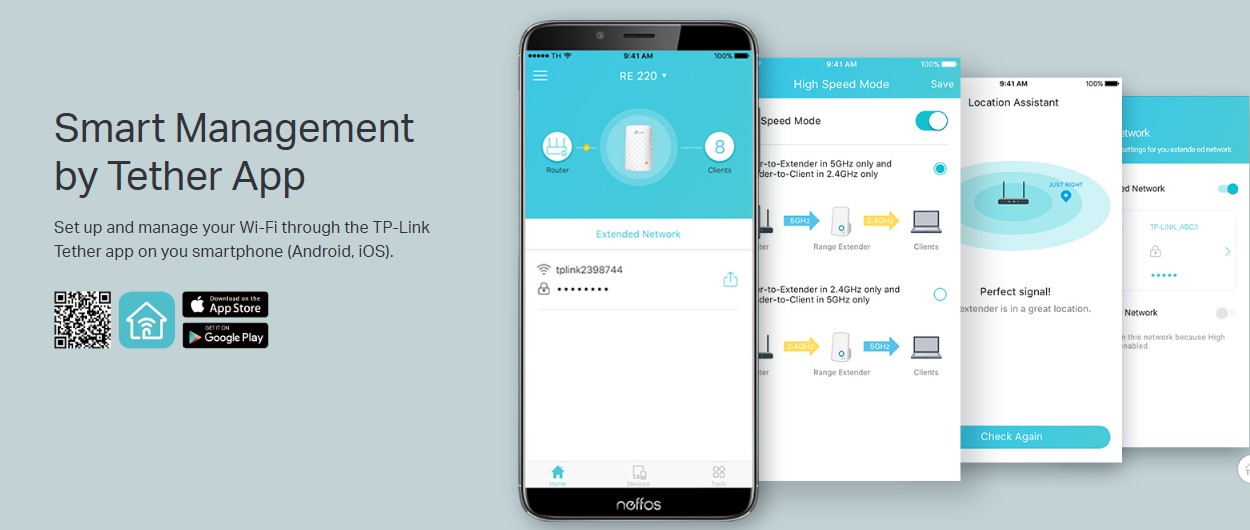

extender via Tether app or Web UI if your router doesn?t support WPS.

Step 2: Relocate the extender to a better location for optimal Wi-Fi coverage with the help of the smart signal indicator light.

Technical Specifications

HARDWARE FEATURES

• Plug Type    EU, UK, US, AU

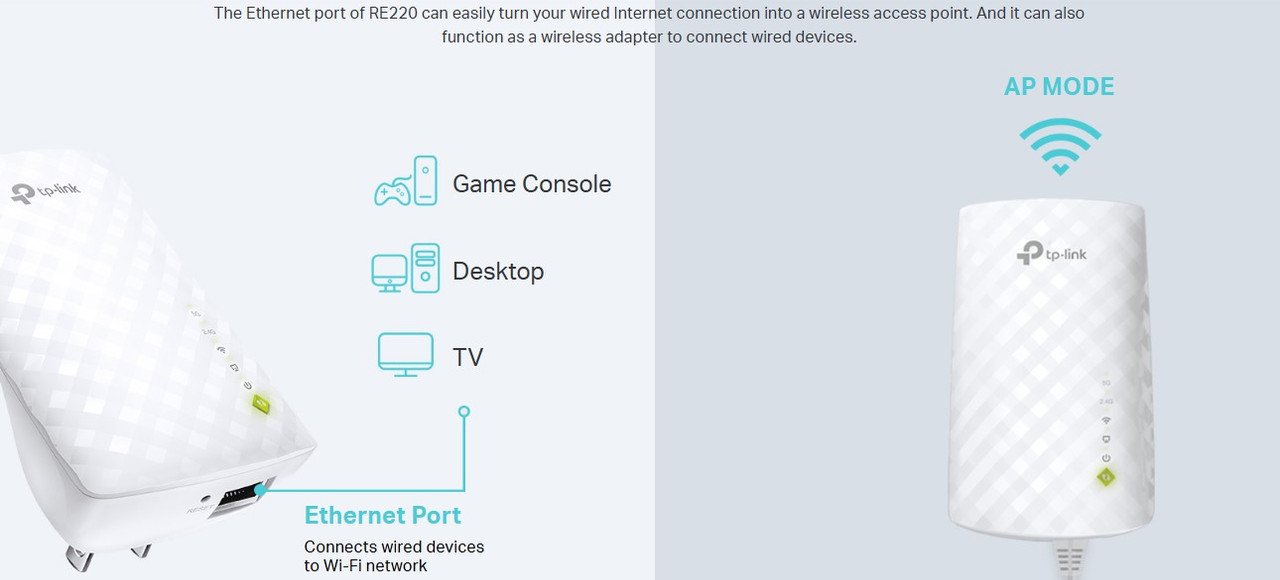

• Ports    1 x 10/100Mbps Ethernet Port (RJ45)
• Button    WPS Button, Reset Button
• Input Power    100-240V~50/60Hz
• Power Consumption    About 6.5W
• Dimensions ( W x D x H )    4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
• Antenna    3 Internal Antennas

WIRELESS FEATURES

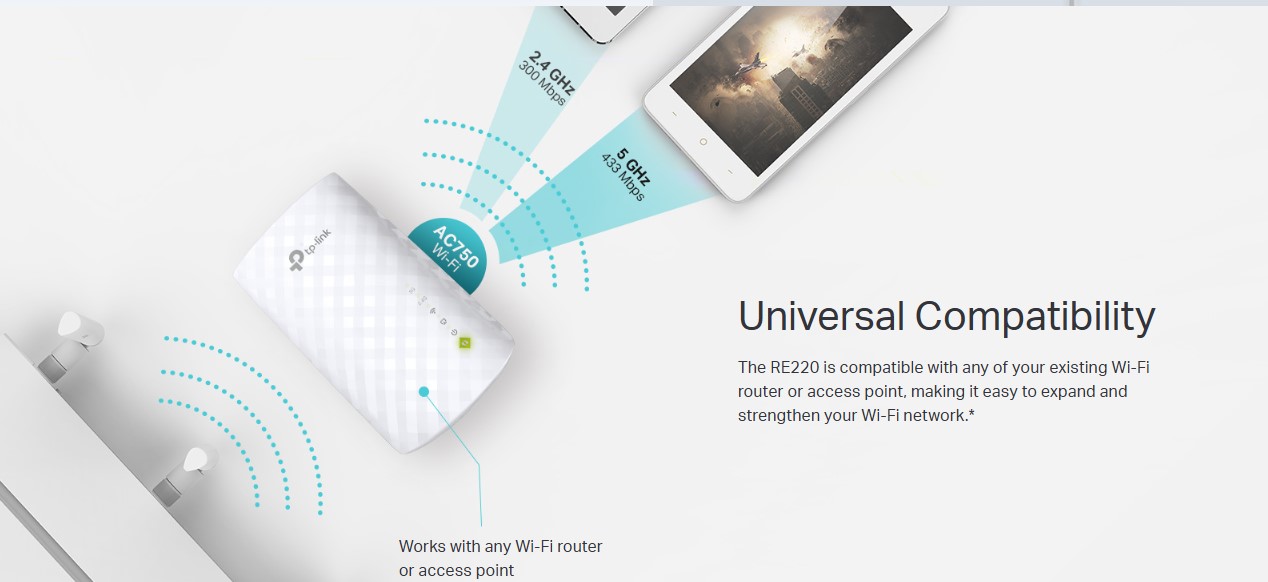

Wireless Standards


• IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency


• 2.4GHz & 5GHz

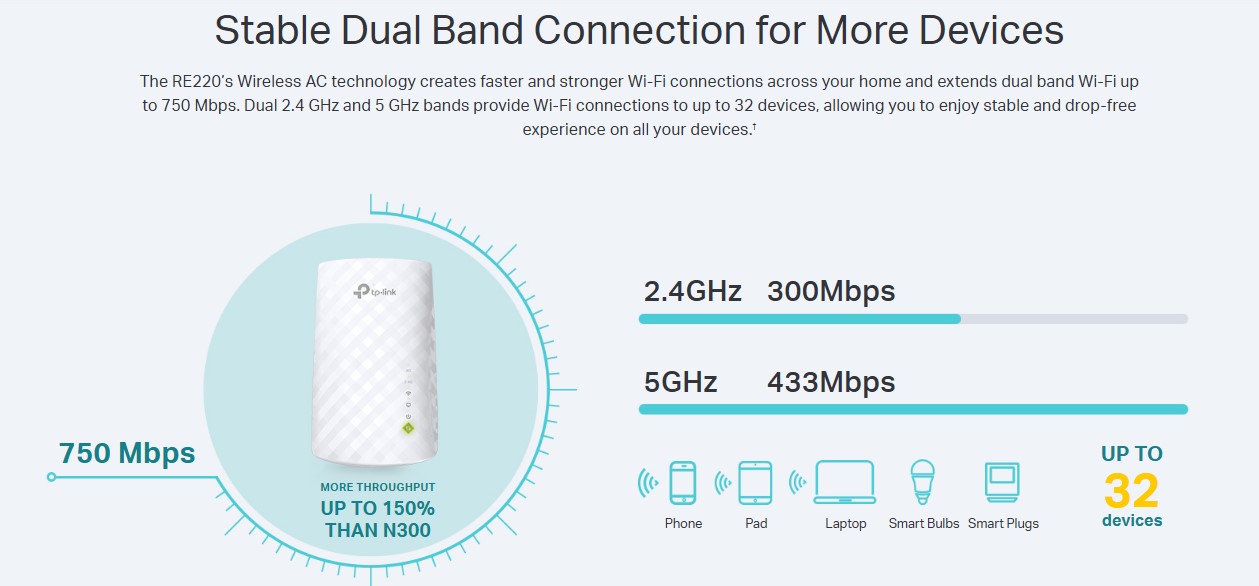

Signal Rate


• 300Mbps at 2.4GHz, 433Mbps at 5GHz

Working Modes


• Range Extender/Access Point

Reception Sensitivity


5G:

• 390M: -60dBm
• 29.3M: -83dBm
• 180M: -64dBm
• 13.5M: -87dBm
• 78M: -68dBm
• 6.5M: -90dBm
• 54M: -75dBm
• 6M:-90dBm

2.4G:

• 270M: -70dBm
• 130M: -70dBm
• 108M: -73dBm
• 54M: -75dBm
• 11M: -86dBm
• 6M: -92dBm
• 1M: -94dBm

Wireless Functions


• Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage

Wireless Security


• 64/128/152-bit WEP
• WPA-PSK / WPA2-PSK

Transmission Power


• < 20 dBm (EIRP)

OTHERS
Certification


• CE, FCC, RoHS

Package Contents


• AC750 Wi-Fi Range Extender RE200
• Quick Installation Guide

System Requirements


• Microsoft? Windows? 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac? OS, NetWare?, UNIX? or Linux.

Environment


• Operating Temperature: 0?C~40?C (32?F~104?F)
• Storage Temperature: -40?C~70?C (-40?F~158?F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
