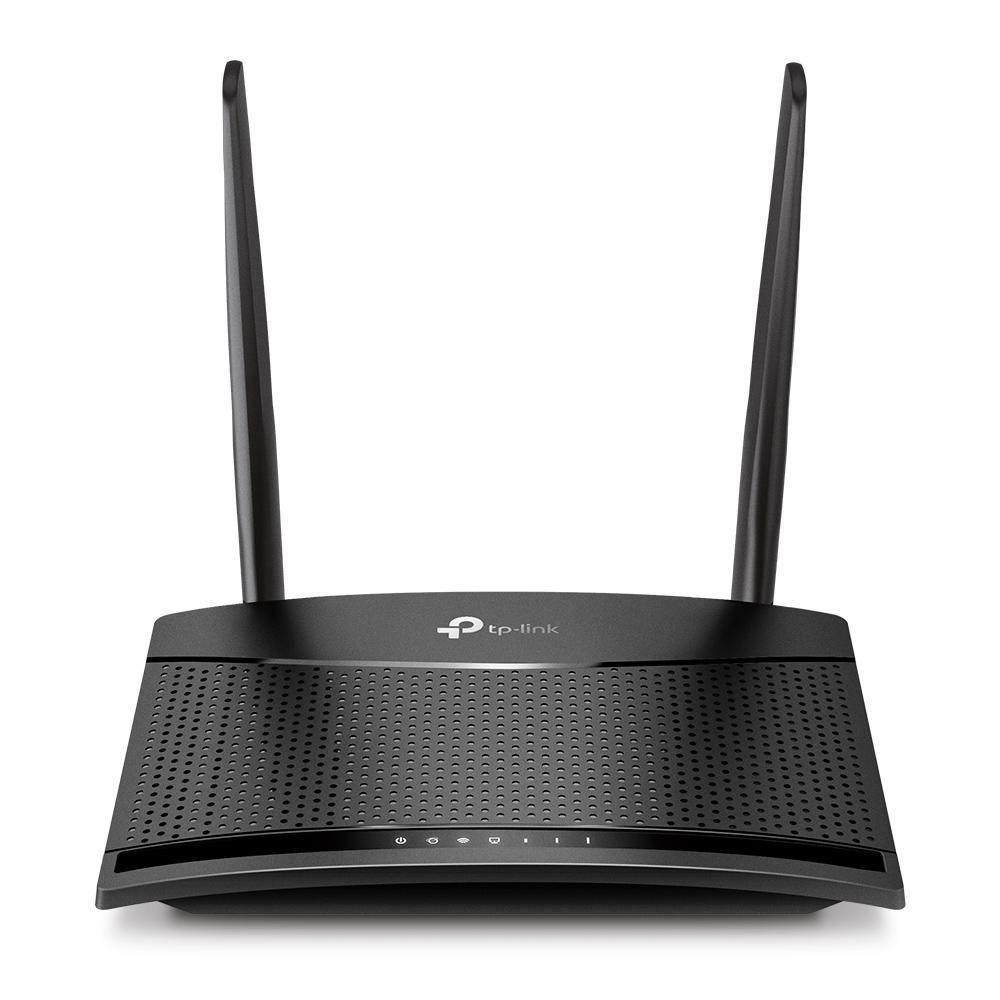

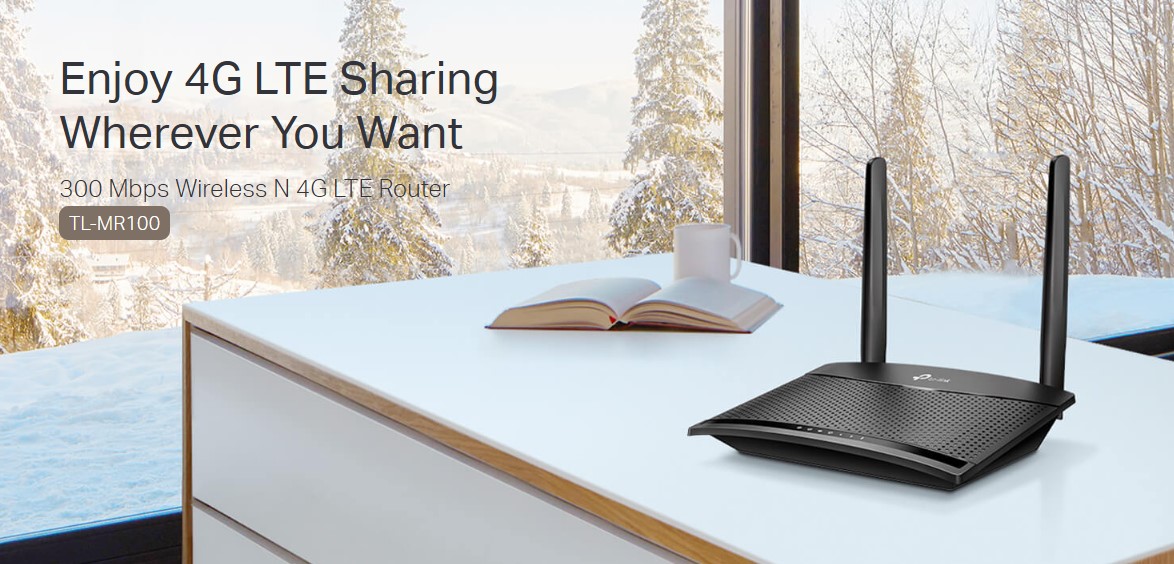

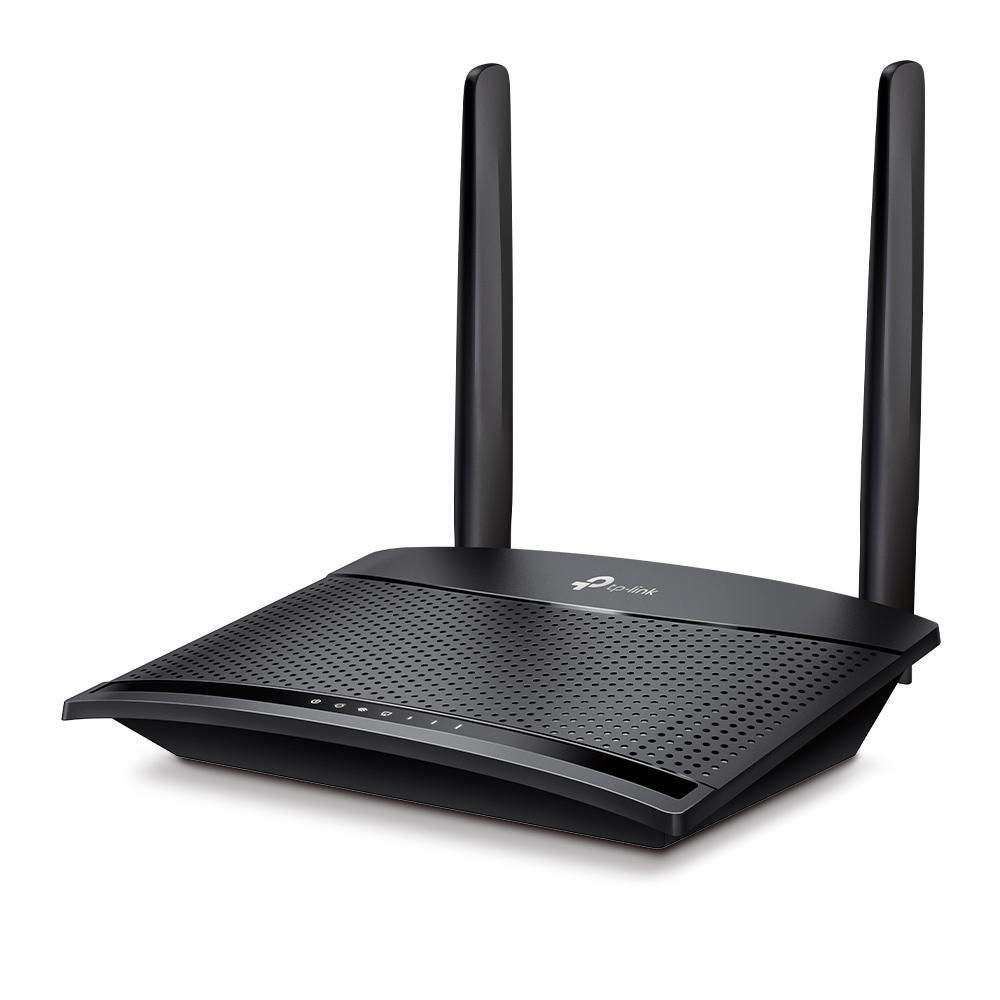

TL-MR100, 300 Mbps Wireless N 4G LTE Router

Wi-Fi Where You Need It

Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you?re at home or working remotely.

Technical Specifications

HARDWARE FEATURES

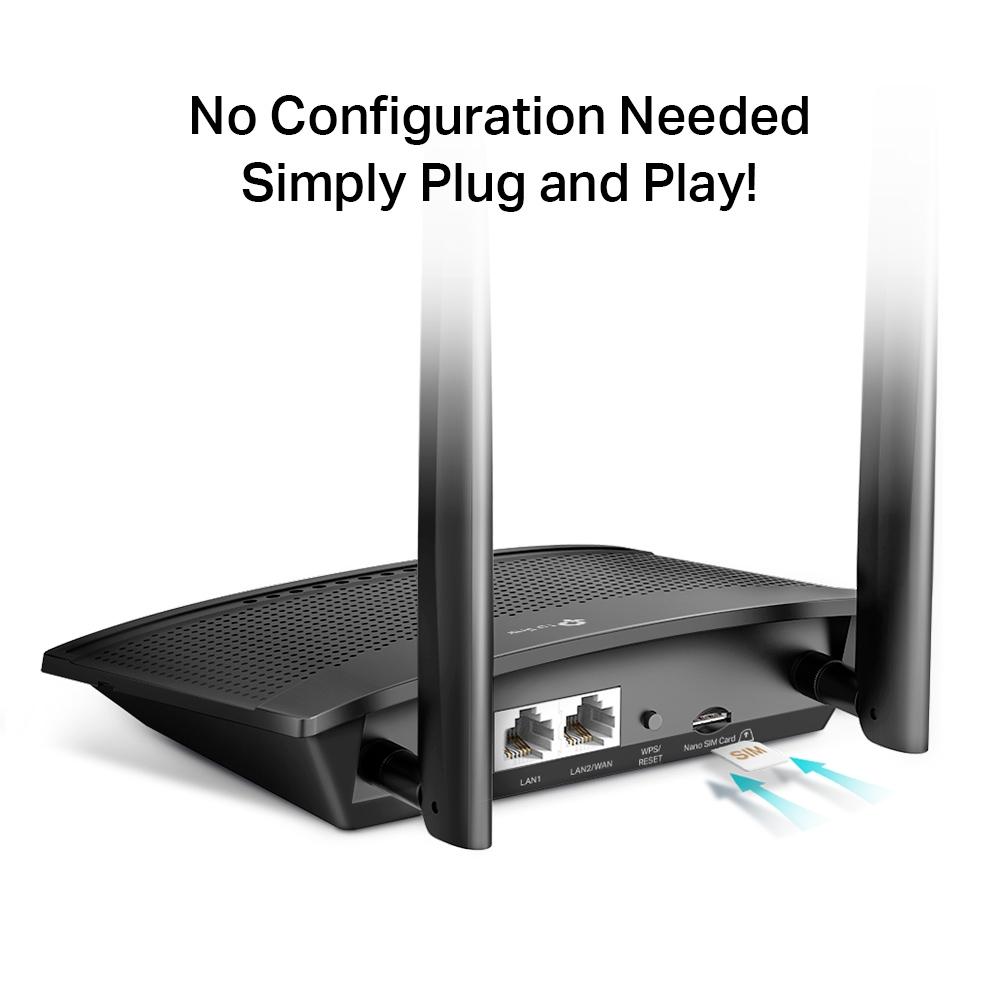

• Interface    1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,

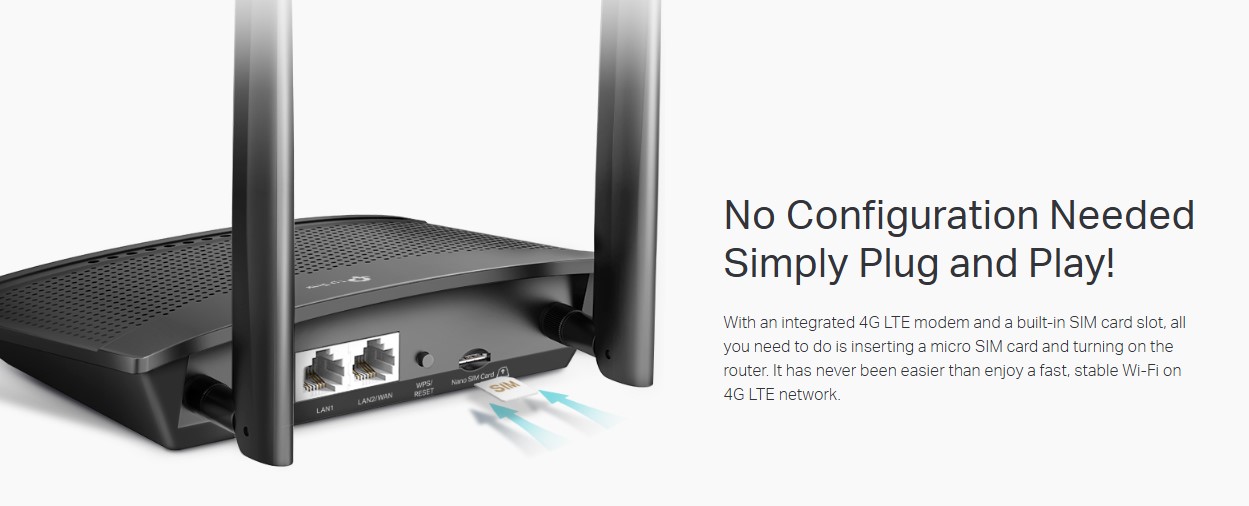

• 1 Nano SIM Card Slot
• Button    WPS/Reset Button
• External Power Supply(EU)    9V/0.85A
• Dimensions ( W x D x H )    6.06?4.49?1.42 in ( 154?114?36 mm)
• Antenna    2 Detachable External 4G LTE Antennas

WIRELESS FEATURES
Wireless Standards


• IEEE 802.11b/g/n

Frequency


• 2.4 GHz

Signal Rate


• 300 Mbps

Reception Sensitivity


• 11g 54M: -74 dBm
• 11n HT20: -71 dBm
• 11n HT40: -68 dBm

Transmit Power


• < 20 dBm (2.4 GHz)

Wireless Functions


• Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover


• Yes

Wireless Security


• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type


• 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
• TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
• 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

• Security    IPv4 SPI Firewall, IP and MAC Address Binding
• Operating Modes    3G/4G Router, Wireless Router
• WAN Type    Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management    Local Management, Remote Management
• DHCP    Server, DHCP Client List, Address Reservation
• Port Forwarding    ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS    DynDns, NO-IP
• Protocols    IPv4, IPv6
• Guest Network    2.4 GHz Guest Network
• Administration    Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS
Certification


• CE, RoHS

Package Contents


• 300 Mbps Wireless N 4G LTE TL-MR100
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Requirements


• Microsoft Windows 98SE/NT/2000/XP/Vista?/7/8/8.1/10, MAC OS,
• NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
• Java-enabled browser
• Nano SIM Card

Environment


• Operating Temperature: 0?~40? (32? ~104?)
• Storage Temperature: -40?~70? (-40? ~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
